XLERATOR Control Assembly (Part Ref. XL 7 / Stock# 40102) for Excel XL-W-ECO XLERATOReco WHITE EPOXY ZINC ALLOY AUTOMATIC HAND DRYER
This Control Assembly (Stock# 40102) is rated for 110V to 277V.
* Please note that this XLERATOReco Control Assembly (Part Ref. XL 7 / Stock# 40102) applies to all XLERATOReco with a Serial No. less than 900000 and some with a Serial No. between 900000 and 999999. If your XLERATOReco's Serial No. is between 900000 and 999999, please call 1-800-535-4393 for assistance.
** If your XLERATOReco's Serial No. is greater than 999999 but DOES NOT have the optional HEPA Filtration, please see the separate listing for the more recent XLERATOReco Control Assembly Part XL 7 / Stock# 40103.
*** If your XLERATOReco's Serial No. is greater than 999999 but DOES have the optional HEPA Filtration, please see the separate listing for the more recent XLERATOReco Control Assembly Part XL 7 / Stock# 40105.

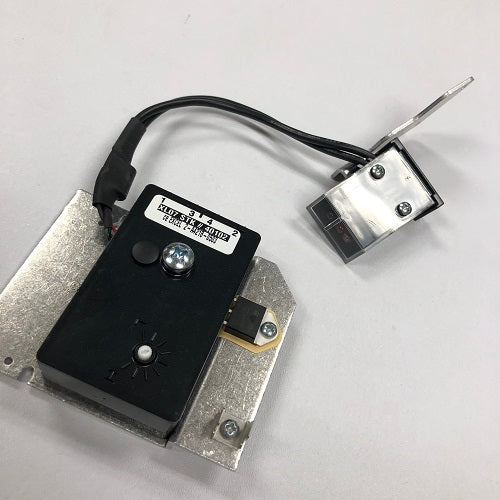

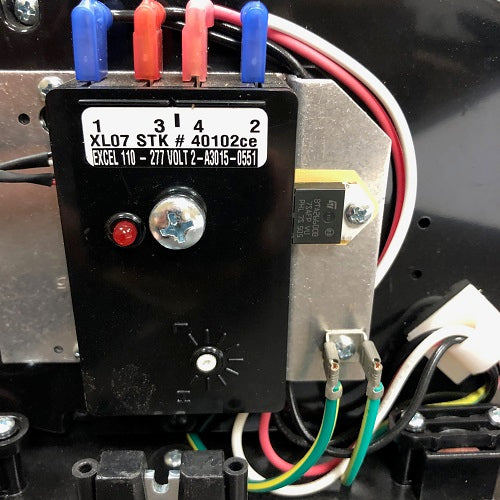

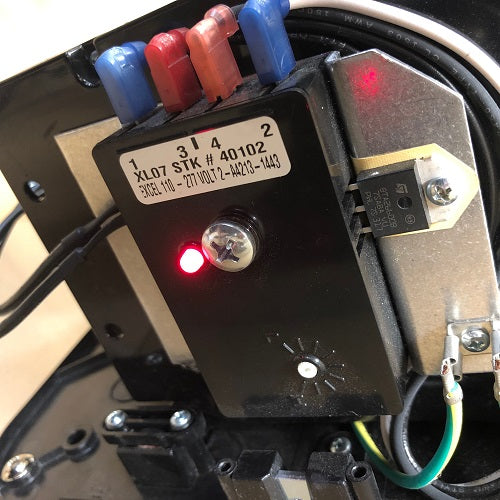

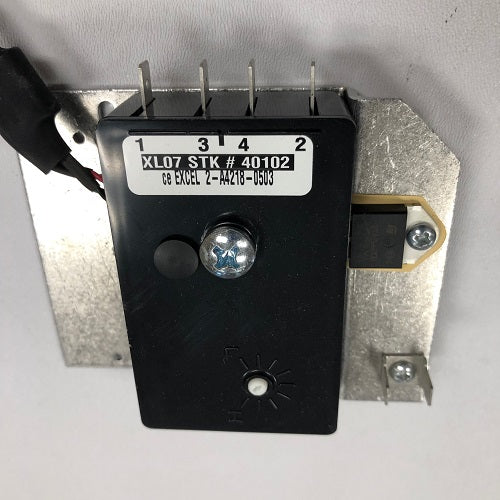

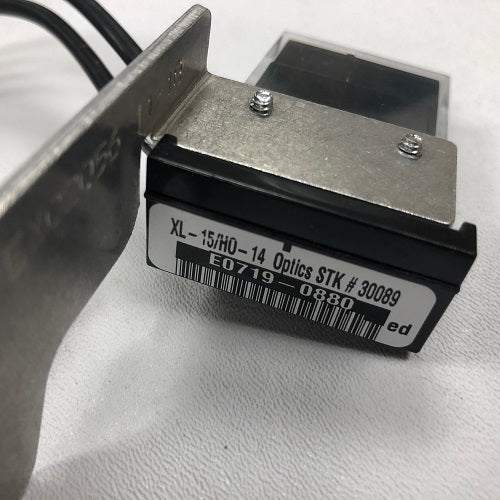

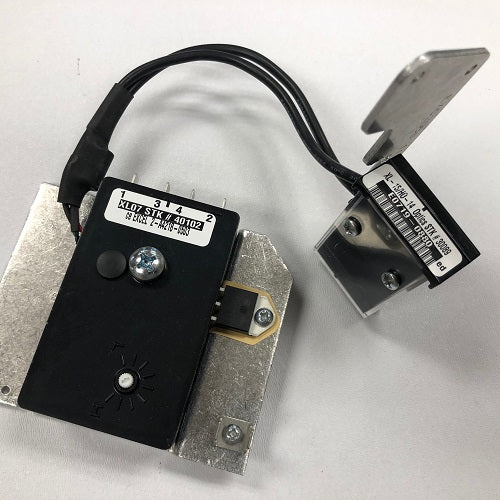

This Control Assembly (Stock # 40102) is the earlier/previous version of the three available XLerator XL 7 Control Assemblies. Unlike the newer Control Assemblies (Stock# 40103 and Stock# 40105), the 40102 does not allow for adjustments to the Motor Speed. On the 40102, only the Sensor Sensitivity or Range is adjustable. Each Control Assembly (Part Ref. XL-7 / Stock# 40102) includes the Optic Sensor (Part Ref. XL 15 / Stock# 30089XL), the Control Circuit Board 40102, and the metal Mounting Brackets for both.

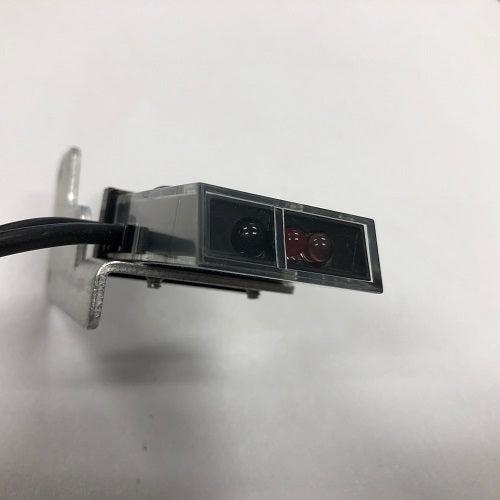

Please note that the Sensor (Part Ref. XL 15 / Stock# 30089XL) may also be purchased separately / individually. See separate listing.
You could buy an entirely new unit to replace your current XL-W-ECO XLERATOReco hand dryer. But with the correct replacement parts, you can keep your hand dryer in working condition at a fraction of the cost of replacing the entire unit.

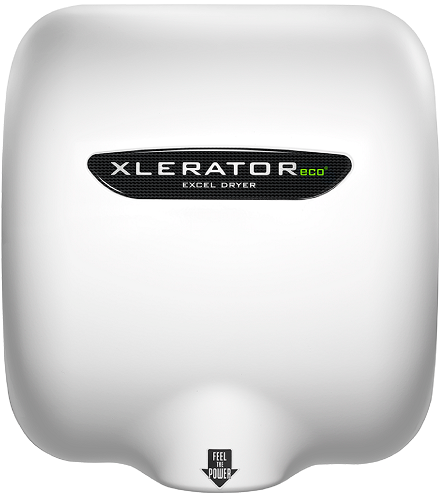

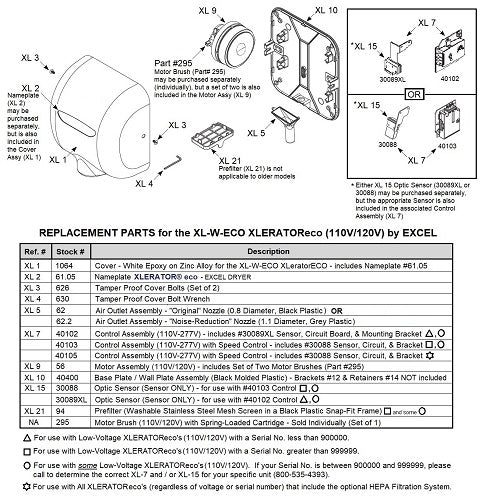

HAND DRYER SHOWN FOR IDENTIFICATION PURPOSES ONLY
To purchase a complete replacement hand dryer for this model, please see the XL-W-ECO XLERATOReco listing.
