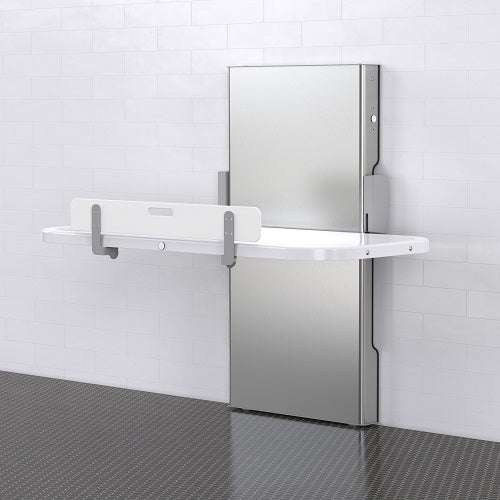

Koala Kare® KB3000-AHL - Adult / Special Needs Wall Mounted Adjustable Height Baby Changing Station (Newest Model)

Koala Kare® KB3000-AHL - Special Needs / Adult, Surface-Mounted, Horizontal-Folding, Height Adjustable Changing Station

LOWEST PRICE GUARANTEED!

FEATURES & BENEFITS

KOALA KARE® KB3000-AHD - Koala's first Special Needs Changing Station horizontal-folding baby changing station.
Safe working load of 500lbs (227kg).
Built to meet or exceed the stringent standards set by public and private regulatory agencies (ISO 60601-1, ISO 60601-2 / IK10 / IPX4). Designed with durability needed specifically for public areas.
Vandal-resistant polyethylene changing surface (stretcher) is IK10 rated for resistance to high-impact & sharp object, while still offering uncompromising comfort.
Concealed gas spring / pneumatic cylinder mechanism ensures smooth, slow, controlled opening and closing.
With no removable parts or exposed cables, all mechanisms meet ASTM and EN safety standards when properly installed.
Two sets of tamper-resistance electronic height controls are integrated into both the wall unit as well as the front of the stretcher.
The adjustable height range for stretcher is min. 11-13/16" (300mm) to max. 40-15/16" (1040mm) from finished floor.
Changing surface (stretcher) is a generous 75-5/16" (1913mm) long and 31-1/2" (800mm) wide
When not in use, the KB3000 folds to a space-saving depth of only 9-23/32" (247mm).
All components are suitable for wet environments, including all electronic controls and the rust-free, powder-coated 2" tube framing.
A fold-away safety guard rail on the outside edge of the stretcher has a curved dip that enables easy access for caregivers.
This integrated safety rail / guard allows for single-handed operation with lift/drop locking mechanism that rotates & magnetically locks under changing bed when in the closed position.
The crevice-free design and intentionally smooth surfaces make for easy cleaning & disinfecting.
Includes a wall-mounted "emergency stop" button to break power to lifting actuator.
The built-in battery back-up system ensures emergency operation in the event of power outage.
Installation instructions, videos, & other resources are available form KOALA KARE®.
Backed by Manufacturer's Three-Year Limited Warranty on Materials and Workmanship under normal conditions. Terms & conditions apply
Made in the United Kingdom

If you're looking for a changing station designed with the durability needed for public spaces and the strength necessary to lift an adult, the Koala Kare® KB3000-AHL changing station is that model. Plus, when you order from ALLIED, you can enjoy the added benefit of knowing you’re getting the guaranteed lowest price of any internet-based retail dealer, as well as fast, free and reliable shipping to anywhere in the contiguous 48 states of the U.S. and superb customer care for as long as you need. We strive to ship most items the same business day the order is received. We look forward to serving you. Feel free to contact us about any question.

Dimensions:

Width x Height (closed or open): 75-5/16” x 60-115/32” (1913 mm x 1536 mm)
Depth from Wall Surface (folded closed): 9-23/32” (247 mm)
Depth from Wall Surface (extended open): 40-9/32” (1023 mm)
Changing Surface (Stretcher) Size: 75-5/16" x 31-1/2" (1913mm x 800mm)
Adjustable Stretcher Height Range (from floor): 11-13/16" to 40-15/16" (300mm to 1040mm)
Shipping Weight: 310lbs (140kg)

Materials & Finish

Changing Surface (Stretcher): White UHMW Polyethylene Sheet
Changing Surface / Stretcher Frame: Power-Coated 2" (50mm) Square Tubing
Structural Frame for Wall Unit (Legs): Stainless Steel Tubing with Brushed Finish
Wall Unit Covering: Stainless Steel with Brushed Finish
Pods to Cover Hinge Mechanism: 6mm Thick Plastic.
Stretcher Guard Rail / Safety Rail: Powder Coated Square Tubing Backed with UHMW PE Sheet

This newly designed, durable, and very attractive baby changing station (the KOALA® KB310-SSWM) has an exterior front panel (20GA) and a flange / "recess" pan (18GA) that are crafted from one-piece, deep-drawn, seamless stainless steel with uniform grain and a No. 304 brushed (satin) finish. Being made of one stainless steel piece, all seams, sharp edges, and weld lines are eliminated; the modern aesthetic is unparalleled. An updated KOALA® logo is laser etched into the stainless front panel. And with no visible plastic or adhesive labels applied to the front of the station, there's nothing to interfere with the beauty of the stainless. The interior bed is made of injection-molded, high-density polypropylene (GREY in color) with MICROBAN® antimicrobial additive permanently embedded into the plastic. It is easy to clean and resistant to odors and both fungal & bacteria growth. In addition, a newly-designed, built-in, locking, two-cavity dispenser for sanitary liners (KB150-99) and/or diaper disposal sacks (KB160 Diaper Pouch™) is conveniently located just above the changing surface when folded open. With the new integrated spring tab, only one liner is dispensed at a time. Total capacity of the dispenser is approximately 50 liners if both cavities are used for liners. Neither liners nor diaper bags are included, but are available for purchase. See separate listings for these items in "Liners & Accessories".

The Koala® KB310-SSWM changing station is designed to be installed directly on to an existing wall surface using the included hardware. Six pre-drilled mounting holes in the back wall of the unit are designed for wood screws (provided) into wood studs on 16" centers. For installation on walls that do not have wood studs 16" on center or metal studs or concrete block, specialized fasteners or toggle fasteners may need to be obtained by the owner locally. Installation instructions (provided) address these different wall materials / scenarios. The station folds down horizontally so that the adult is facing the wall while changing the infant whose is laying parallel to the wall. With a reinforced metal-on-metal hinge running the full length of the station and a 11GA steel mounting chassis, the KB310-SSWM meets all ASTM requirements for static load performance when properly installed. Although designed for infants that weigh no more than 50 lbs. and 3.5 years of age, in testing the KB310-SSWM easily supported 300 lbs. with minimal deflection of the "bed" from horizontal. A pneumatic cylinder provides for easy, slow, and controlled opening and closing of the bed, requiring less than 5lbs of force. Both the pneumatic cylinder and metal hinge mechanism are fully concealed (regardless of bed position) to eliminate tampering and possible pinch hazard. Graphics and safety messages are provided in four (4) different languages.

The contoured changing surface area is 535 sq. in. (3452 sq. cm) and comes complete with a impervious, replaceable thermoplastic polyurethane (TPU) safety strap. Also included is an external bag hook (KB310-54) made from a solid stainless steel rod (7/8 in dia.) that is to be mounted on the wall next to the changing station, allowing for safe storage of and easy access to purse or diaper bag. When open the changer extends out from the wall face 21-5/16” (541 mm). And when properly installed, this changer complies with the highest Americans with Disabilities Act (ADA), American National Standards Institute (ANSI), and Texas Accessibility Standards (TAS) regulations.
